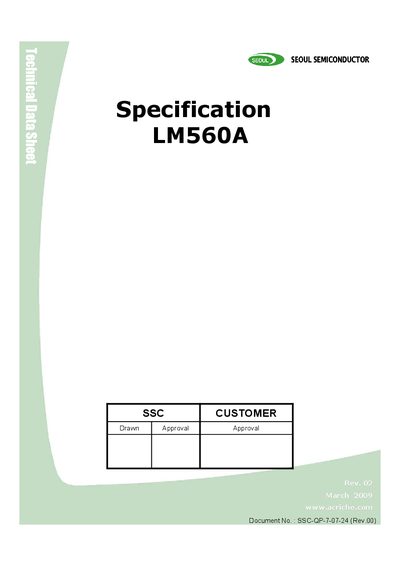

Seoul Semiconductor LM560A LED Datasheet
This handbook details the LM560A Lamp LED series, including its full code, features, and typical applications such as outdoor signage, traffic signals, and backlighting. It lists absolute maximum ratings, electrical characteristics, outline dimensions, optical characteristics, color and binning information, and packaging details.
Reliability testing procedures, handling precautions, and recommended soldering conditions are also covered, along with graphs of forward voltage, luminous intensity, radiation diagrams, and wavelength spectra.
SEOUL LM560A specifications
| DC Forward Current | 30 mA |
|---|---|
| Forward Peak Pulse Current | 100 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 114 mW |
| Operating Temperature | -35 ~ 85 °C |
| Storage Temperature | -40 ~ 100 °C |
| Solder Temperature | 260°C for 10 seconds |
| Luminous Intensity (typical) | 1650 – 2500 mcd |
| Chromaticity Coordinates | x=0.45, y=0.41 |
| Forward Voltage (typical) | 3.3 – 3.8 V |
| Viewing Angle | 60° |
All SEOUL LM560A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DC forward current for the LM560A?
The LM560A can handle a DC forward current of up to 30 mA.
What is the typical forward voltage of the LM560A at 20 mA?
At 20 mA the forward voltage is typically between 3.3 V and 3.8 V.
What storage temperature and humidity are recommended for the LM560A LED?
Store the LEDs at 5 °C – 30 °C with a maximum humidity of 50 % before opening the package.
From: Seoul Semiconductor LM560A Warm White Lamp LED Datasheet
What is the maximum DC forward current for the LM560A?
The maximum DC forward current is 30 mA, with a peak pulse current of 100 mA.
