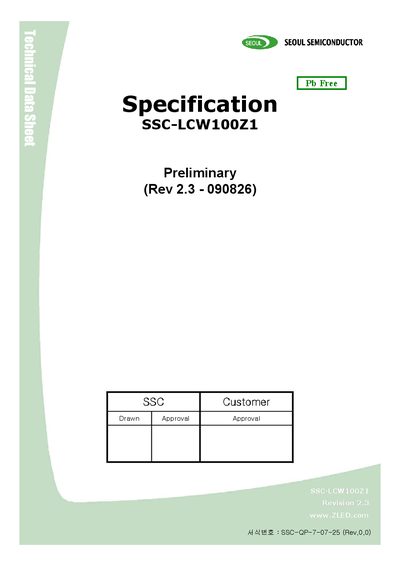

This document describes the features and characteristics of the SSC-LCW100Z1 model, including its dimensions, emitted color, material, suitability for compact appliances, high brightness, and high efficiency.
The SSC-LCW100Z1 is a compact surface‑mounted white LED (3.5 × 2.8 × 1.6 mm) designed for array lighting, decorative lighting, information boards, and small‑size devices. It offers high brightness, high efficiency, and a wide color temperature range (2600‑8200 K) while complying with Pb‑free and RoHS requirements.
The document lists electrical and optical ratings such as 175 mW power dissipation, 50 mA forward current (100 mA peak), forward voltage of 3.2 V at 20 mA, and an operating temperature range of –30 °C to 95 °C. It also includes recommended soldering profiles, storage conditions, and reliability test procedures for safe handling and long‑term performance.
| Power Dissipation | 175 mW |
|---|---|
| Forward Current (typical) | 50 mA |
| Peak Forward Current | 100 mA |
| ESD Sensitivity (HBM) | 10,000 V |
| Operating Temperature Range | -30 °C ~ 95 °C |
| Storage Temperature Range | -40 °C ~ 100 °C |
| Junction Temperature | 125 °C |
| Forward Voltage (20 mA) | 3.2 V |
| Color Temperature (CCT) | 2600 K – 8200 K |
| Viewing Angle | 120° |
Pre‑heat to a maximum of 150 °C for up to 2 minutes, then apply lead‑free soldering heat at 255 °C ± 5 °C for no more than 10 seconds, followed by cooling at about –5 °C per second.
The typical forward current is 50 mA, with a peak forward current rating of 100 mA.
The device can operate from –30 °C up to 95 °C.
