This document provides technical data for Z-Power LED X10490, including absolute maximum ratings, electro-optical characteristics, reliability tests, color and binning, etc. This LED is designed for high current operation and high flux output applications, with better thermal management characteristic.

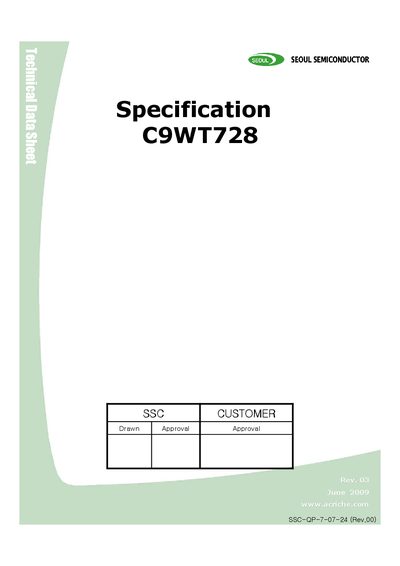

This handbook details the C9WT728 silicone‑resin LED, covering its electrical and optical characteristics, maximum ratings, and color‑binning options. It includes dimensional data, reel and packing specifications, and recommended soldering methods.
The document also outlines reliability testing, storage and handling procedures, and precautions for moisture sensitivity, offering guidance on cleaning, drying, and avoiding mechanical stress during assembly.
| Power Dissipation | 324 mW |
|---|---|
| Forward Current | 90 mA |
| Peak Current per die | 100 mA |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +100 °C |
| Forward Voltage (typical, 20 mA) | 3.3 V |
| Reverse Current (max, 5 V) | 10 µA |
| Luminance Intensity (warm) | 4.0 – 4.5 cd |
| Luminous Flux | 14.5 lm |
| Color Temperature | 2,600 – 7,000 K |
| Viewing Angle | 26 – 120° |
| Color Rendering Index (CRI) | 95 |
The maximum forward current is 90 mA per die.
The LED operates from –40 °C to +85 °C.
