CAT5116 is a linear programmable potentiometer, which can be used for automated product calibration, remote control adjustment, audio volume control, sensor adjustment and other scenarios.

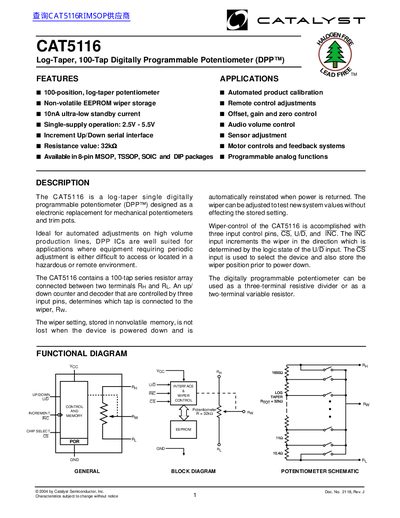

The CAT5116 is a log‑taper, 100‑position digitally programmable potentiometer (DPP™) designed as an electronic replacement for mechanical potentiometers. It features a single‑supply operation from 2.5 V to 5.5 V, non‑volatile EEPROM wiper storage, and an ultra‑low standby current of 10 nA.
Typical applications include automated product calibration, remote control adjustments, audio volume control, sensor adjustment, and motor control feedback. The device is available in 8‑pin MSOP, TSSOP, SOIC and DIP packages, and operates over an industrial temperature range of –40 °C to +85 °C.
| Potentiometer Resistance | 32 kΩ |
|---|---|
| Supply Voltage Range | 2.5 V – 5.5 V |
| Number of Tap Positions | 100 |
| Standby Current | 10 nA |
| Resistance Tolerance | +20 % |
The CAT5116 has a potentiometer resistance of 32 kΩ.
It operates from 2.5 V to 5.5 V.
The device provides 100 log‑taper tap positions.
The standby current is ultra‑low at 10 nA.
