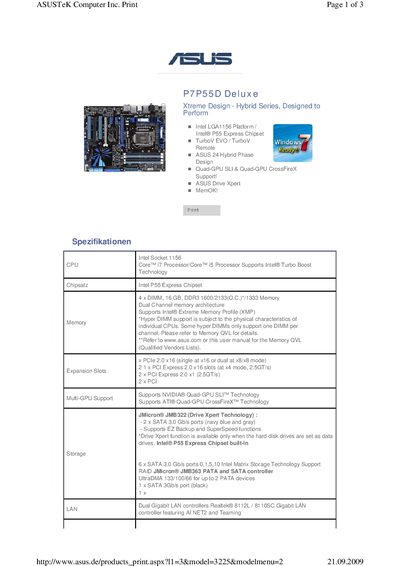

P7P55D Deluxe is ASUS's Xtreme Design Series motherboard, designed to perform. It supports the Intel LGA1156 platform and Intel P55 Express chipset. It features TurboV EVO and TurboV Remote technologies, a 24 Hybrid Phase Design, support for Quad-GPU SLI and Quad-GPU CrossFireX, ASUS Drive Xpert, and MemOK!
This manual covers the key specifications of the ASUS P7P55D Deluxe motherboard, including its Intel LGA1156 socket, Intel P55 Express chipset, memory support, expansion slots and storage options. It also details the onboard audio, networking, USB ports and power design features.
Additional sections describe the back‑panel and internal connectors, BIOS features, manageability options, included accessories and the ATX form factor dimensions, helping users install, configure and troubleshoot the board.
| CPU Socket | Intel LGA1156 |
|---|---|
| Chipset | Intel P55 Express |
| Memory Slots | 4x DIMM, up to 16 GB DDR3 1600/2133 |
| SATA Ports | 6 x SATA 3.0 Gb/s ports + 1 x SATA 3 Gb/s port |
| LAN Controllers | Dual Gigabit Realtek 8112L / 8110SC |
| Audio Codec | VIA VT2020 10‑Channel HD Audio CODEC |
| USB Ports | 14 USB 2.0 ports (6 mid‑board, 8 back panel) |
| BIOS | AMI BIOS, 16 Mb Flash ROM |
| Form Factor | ATX, 12 in × 9.6 in (30.5 cm × 24.4 cm) |
It uses an Intel LGA1156 socket.
The board provides six SATA 3.0 Gb/s ports and an additional SATA 3 Gb/s port.
It includes an AMI BIOS stored in a 16 Mb Flash ROM.
The motherboard follows the ATX form factor and measures 12 inches by 9.6 inches.
