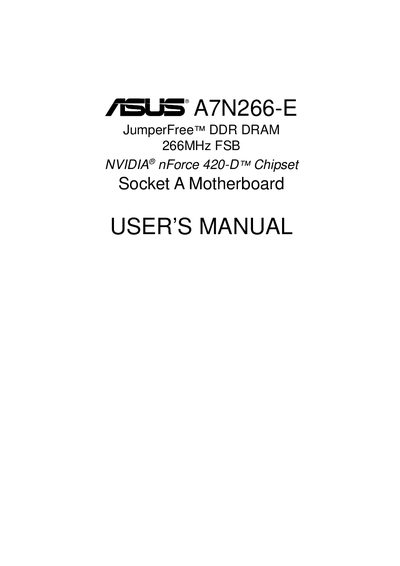

ASUS A7N266-E User Manual

This document is the user manual for ASUS A7N266-E motherboard.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 100
File format: PDF
File size: 2.9 MB
Published: 04 May, 2012
Updated: 30 September, 2023
Model: A7N266
MD5 checksum: 2276EC668FF6D93E4941B72FFD2A9FC1
PDF: ASUS A7N266-E User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASUS A7N266-E motherboard, including hardware setup, BIOS configuration, and bundled software installation. It also lists the specifications of the board and provides troubleshooting guidance.

The document is organized into sections such as Introduction, Features, Hardware Setup, BIOS Setup, Software Setup, Software Reference, and an Appendix, with detailed checklists and diagrams to help users assemble and operate the system.

What's inside

Introduction
Features
Hardware Setup
BIOS Setup
Software Setup
Software Reference
Appendix

Specifications

Supported processors	AMD Athlon XP / Athlon / Duron 500 MHz – 1.6 GHz
North Bridge chipset	NVIDIA nForce 420-D
Memory bandwidth	4.2 GB/s
USB ports	6
PCI slots	5

Frequently asked questions

What CPUs can be used with the A7N266-E motherboard?

It supports AMD Athlon XP, Athlon and Duron processors ranging from 500 MHz to 1.6 GHz.

How many USB ports are provided on the board?

The board includes six USB ports.

What is the chipset used for the North Bridge?

The North Bridge uses the NVIDIA nForce 420-D chipset.
