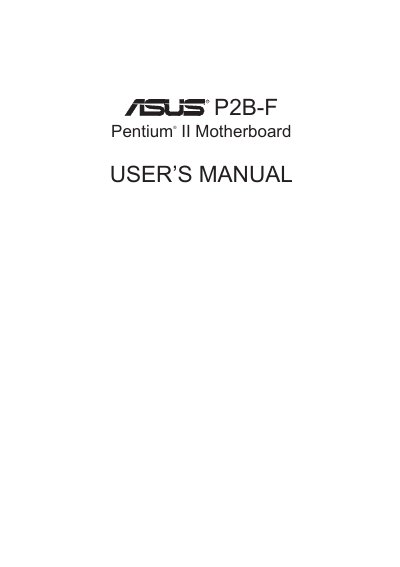

This is a user manual for ASUS P2B-F motherboard
This manual covers the ASUS P2B-F motherboard, a high‑performance board designed for Intel Pentium III, Pentium II and Celeron processors. It includes detailed sections on hardware installation, BIOS configuration, and the bundled support software.
The guide also lists the board’s specifications, such as supported memory types, expansion slots, and peripheral wake‑up features, and provides troubleshooting and regulatory compliance information.
| Chipset | Intel 440BX AGPset |
|---|---|
| Memory type | PC100 SDRAM |
| Maximum memory | 1024 MB |
| Expansion slots | 5 × 32‑bit PCI, 2 × 16‑bit ISA |
| Serial ports | 2 high‑speed UART compatible serial ports |
| Parallel port | 1 parallel port with EPP/ECP capabilities |
| SMBus interface | Supported |
| Peripheral Wake‑Up | Modem, keyboard, LAN card |
The board provides five 32‑bit PCI slots and two 16‑bit ISA slots.
It uses PC100‑compliant SDRAM in four DIMM sockets for up to 1024 MB of memory.
