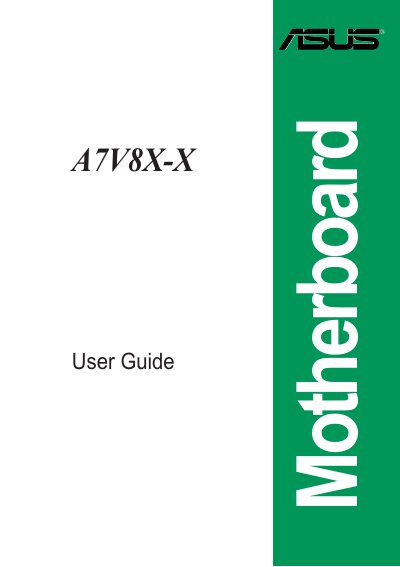

This is a user guide for A7V8X-X motherboard
This guide covers everything you need to know to install and configure the ASUS A7V8X-X motherboard, including hardware layout, CPU and memory installation, and connector details. Safety precautions and warranty information are also included to help you avoid damage and ensure proper operation.
The manual details BIOS features, power‑up control, and advanced configuration options, as well as the software utilities on the support CD such as drivers, audio configuration, and multi‑channel audio setup. Contact information for ASUS technical support worldwide is provided at the end of the guide.
| CPU socket | Socket A for AMD Barton/Thoroughbred/Athlon XP/Athlon/Duron 2.25+ GHz CPU |
|---|---|
| Chipset | Northbridge VIA KT400, Southbridge VIA VT8235 |
| Memory | 3 × DDR DIMM sockets, max 3 GB unbuffered PC2100/1600 non‑ECC DDR SDRAM |
| Expansion slots | 1 × AGP 8X, 6 × PCI |
| USB ports | 6 × USB 2.0 ports (built‑in) plus 1 additional connector |
| LAN | 10/100 Mbps Ethernet (optional) |
| Form factor | ATX 12 in × 9.6 in (30.5 cm × 24.5 cm) |
