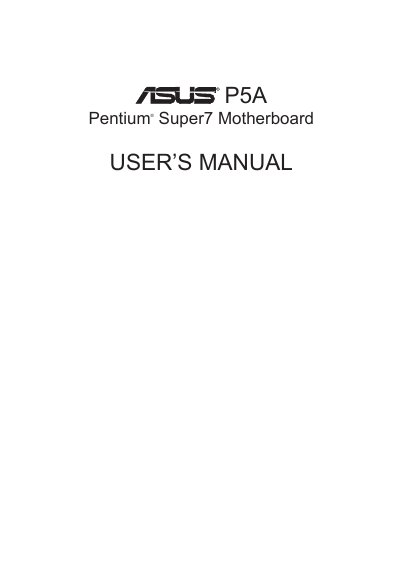

ASUS P5A Motherboard User Manual

This document is the user manual for the R P5A Pentium ® Super7 Motherboard, providing instructions for usage and important notices.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 1.2 MB
Published: 04 May, 2012
Updated: 28 September, 2023
Model: P5A
MD5 checksum: 29735A330AA5E783FA34BE3BD528953B
PDF: ASUS P5A Motherboard User Manual PDF

About this manual

This manual introduces the ASUS P5A motherboard, detailing its supported CPUs, memory types, and optional components. It also explains the layout, connector functions, and safety notices.

The guide walks users through installation steps, BIOS configuration, and optional software utilities such as the ASUS CIDB chassis sensor and LAN card. FCC and regulatory compliance information is included at the end.

What's inside

Introduction
Features
Installation
BIOS Software
Support Software
ASUS CIDB Installation
ASUS LAN Card Installation
Appendix
FCC & DOC Compliance

Specifications

Front Side Bus	100 MHz
L2 Cache	512 KB–1 MB
PCI Audio (optional)	ESS 32‑bit PCI audio
Wake‑On‑LAN Connector	Supported

Frequently asked questions

Does the motherboard include a Wake‑On‑LAN feature?

Yes, a Wake‑On‑LAN connector is provided for compatible network cards.
