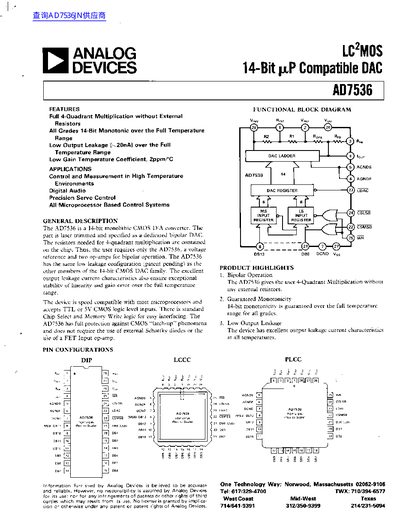

The AD7536 is a 14‑bit monolithic CMOS DAC with built‑in resistors for 4‑quadrant multiplication, requiring only a voltage reference and two op‑amps for bipolar operation. It offers full‑scale monotonicity over the entire temperature range, low output leakage (~‑0.20 nA) and a low gain temperature coefficient of 2 ppm/°C.
The document includes detailed specifications such as resolution, accuracy, input resistance, power‑supply requirements, absolute maximum ratings, timing diagrams, pin descriptions, mechanical dimensions and example interface circuits for MC68000 and Z80 processors.
