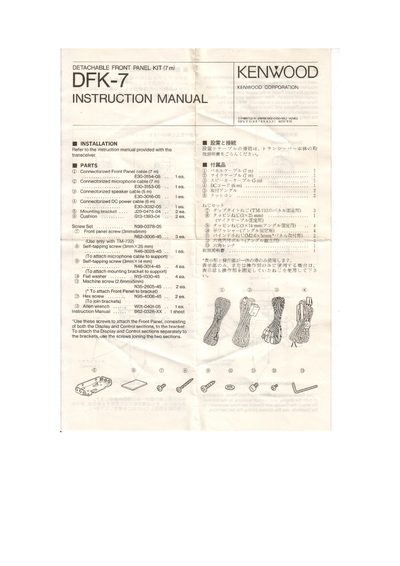

This manual provides step‑by‑step instructions for installing the Kenwood DFK-7 front panel. It includes a parts list with connectorized cables, screws, washers, and mounting brackets, and explains how to attach the display and control sections to the bracket.
The supplied mounting brackets can be assembled in several configurations to suit different installation requirements. The guide shows suggested bracket positions and safety considerations, helping users choose the most secure and convenient layout for the front panel.
| Front Panel cable length | 7 m |
|---|---|
| Microphone cable length | 7 m |
| Speaker cable length | 5 m |
| DC power cable length | 6 m |
| Self‑tapping screw size (large) | 8 mm × 25 mm |
Use the supplied screws to secure the front panel, which consists of display and control sections, to the bracket as shown in the assembly diagrams.
