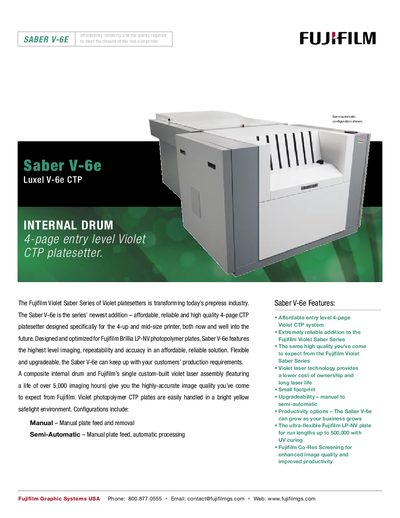

The Saber V-6e is the newest addition to the Fujifilm Violet Saber Series of Violet platesetters, and is an affordable, reliable and high quality 4-page CTP platesetter designed specifically for the 4-up and mid-size printer, both now and well into the future.
This manual describes the Fujifilm Saber V-6e, an entry‑level 4‑page violet CTP platesetter designed for mid‑size printers. It covers system configurations, media handling, imaging technology, and optional upgrades.
Key features include a composite internal drum, a 60 mW violet laser with a life of over 5,000 imaging hours, PC‑based user interface, and flexible media supply options (manual or semi‑automatic). Performance specifications such as resolution, plates per hour, power requirements, and environmental limits are detailed for proper installation and operation.
| Media Supply | Semi‑Automatic and Manual Configuration |
|---|---|
| Laser Power | 60 mW violet laser |
| Standard Resolutions | 1200 dpi & 2400 dpi |
| User Interface | PC‑based only |
| Power Requirements | Single phase 230 V ±10%, 16 A, 47‑63 Hz |
| Heat Output | 7,846 BTU/hour |
| Weight | 1,984 lb (excluding processor) |
| Plates per Hour (2400 dpi) | 10 plates/hour |
| Media Type | Fujifilm Brillia LP‑NV photopolymer violet aluminum plate |
| Operating Environment | 60 °F‑77 °F, 55 %‑5 % RH (non‑condensing) |
The Saber V-6e can be configured for manual plate feed and removal or semi‑automatic mode with manual feed and automatic processing.
The violet laser assembly is rated for over 5,000 imaging hours, roughly five years of typical use.
It requires single‑phase 230 V ±10% with a current draw of 16 A at 47‑63 Hz.
