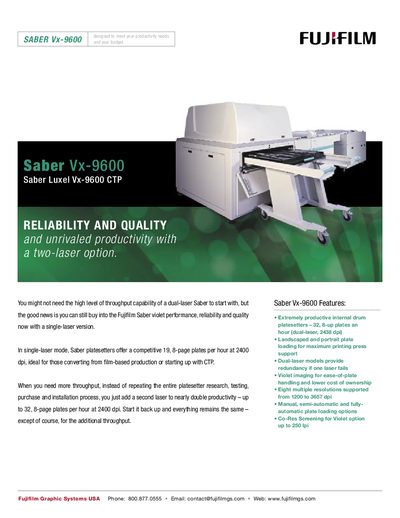

Saber Vx-9600 is a drum type platesetter from Fujifilm. It is a highly productive platesetter that can produce up to 32 8-up plates an hour (dual-laser, 2438 dpi). The machine supports landscaped and portrait plate loading for maximum printing press support. Dual-laser models provide redundancy if one laser fails. Saber Vx-9600 uses violet imaging for ease-of-plate handling and lower cost of ownership. The machine supports eight multiple resolutions from 1200 to 3657 dpi. Saber Vx-9600 also supports manual, semi-automatic and fully- automatic plate loading, as well as Co-Res Screening for Violet option up to 250 lpi.
The Fujifilm Saber Vx-9600 is a violet‑laser CTP platesetter available in single‑laser and upgradeable dual‑laser configurations. It delivers up to 32.8‑page plates per hour at 2400 dpi in dual‑laser mode and 19.8‑page plates per hour in single‑laser mode, supporting a wide range of portrait and landscape plate sizes.
The system features an intuitive touch‑screen control panel, automatic cassette loading (up to five cassettes), auto interleaf removal, and integration with Fujifilm RIPs such as Celebrant, Rampage and Output Director. Electrical requirements are 220/240 V, 50/60 Hz, single‑phase, 16 A, with a heat output of 9 500 BTU/h. Dimensions vary by configuration, with the fully‑automatic model measuring 71" H × 80.8" W × 223" L.
| Plates per hour (dual‑laser) | 32.8‑page plates/hr @ 2400 dpi |
|---|---|
| Plates per hour (single‑laser) | 19.8‑page plates/hr @ 2400 dpi |
| Laser power | 30 mW violet laser @ 405 nm |
| Supported resolutions | 1200 – 3657 dpi |
| Electrical supply | 220/240 V, 50/60 Hz, single‑phase, 16 A |
| Maximum plate size (full‑automatic) | 45.2" × 37.2" (12‑gauge plate) |
| Operating temperature range | 69 °F – 77 °F |
| Operating humidity range | 55 % – 95 % non‑condensing |
The system requires 220/240 V, 50/60 Hz single‑phase power at 16 A, with a heat output of about 9 500 BTU per hour.
