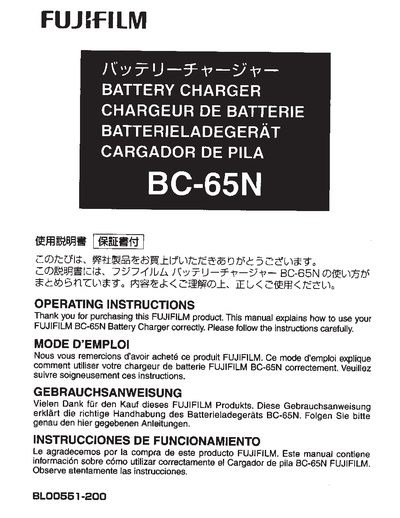

This manual explains how to use the FUJIFILM BC-65N Battery Charger correctly, including the main features and operating instructions.
This manual explains how to use the Fujifilm BC-65N battery charger. It is designed for the FUJIFILM NP-40, NP-95, and NP-120 rechargeable batteries and includes step‑by‑step charging procedures and indicator meanings.
The document also contains extensive safety warnings, environmental precautions, and technical specifications such as power supply range, output voltage, charging times, and dimensions. Follow the instructions to avoid electric shock, fire hazards, and damage to the charger or batteries.
| Device type | Battery Charger BC-65N |
|---|---|
| Power supply | AC 100‑240 V 50‑60 Hz |
| Rated input capacity | 6 W |
| Rated output | DC 4.2 V 650 mA |
| Charging time (NP‑40, 750 mAh) | 1.6 hrs |
| Charging time (NP‑95, 1800 mAh) | 3.5 hrs |
| Charging time (NP‑120, 1950 mAh) | 3.8 hrs |
| Operating temperature | 0 °C to +40 °C |
| Dimensions | 65 mm × 25.3 mm × 80 mm |
| Weight | ≈59 g (2.0 oz) |
The BC-65N charger works only with FUJIFILM NP‑40, NP‑95, and NP‑120 rechargeable batteries.
It accepts an AC input of 100 V to 240 V at 50‑60 Hz.
Charging an NP‑95 (1800 mAh) battery takes about 3.5 hours.
Immediately unplug the charger from the outlet and contact your dealer.
