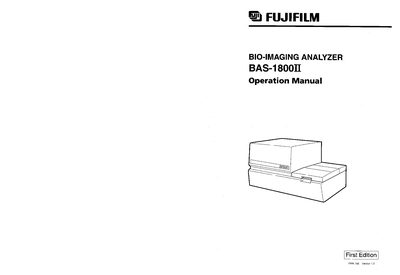

The BAS-1800II is a bio‑imaging analyzer designed for auto‑radiography with an Imaging Plate (IP). It enables rapid visualization of electrophoresis and quantification of radioactivity recorded on the IP, offering a faster alternative to X‑ray film systems.
The manual covers safe handling, grounding requirements, and detailed specifications of the device. Users are instructed to avoid placing water, metal, or heavy objects on the IP reader, to keep the unit grounded, and to follow break periods for eye health during prolonged use.
| Dimensions (W×D×H) | 830 mm × 590 mm × 450 mm |
|---|---|
| Weight | 65 kg |
| Power Supply Capacity | 1.2 A (100 V), 0.6 A (200 V) |
| Operating Temperature | 15 °C – 30 °C |
| Storage Temperature | -25 °C – 60 °C |
| Operating Humidity | 35 % – 70 % RH (non‑condensing) |
| Reading Size of IP | 20 × 25 cm, 23 × 25 cm |
| Pixel Size | 50 µm / 100 µm (selectable) |
| Maximum Image Capacity | 47 MB (50 µm) / 12 MB (100 µm) |
| Number of Gradations | 65,536 |
Before use, connect the IP reader to the protective earth line of the indoor wiring; if grounding is not possible, contact the sales dealer.
