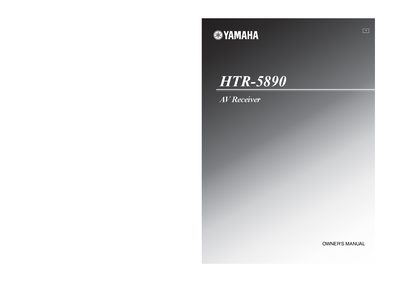

This manual describes the operation and maintenance of the HTR-5890 AV Receiver
This manual covers all essential information for the Yamaha HTR-5890 AV Receiver, including important safety warnings, recommended ventilation clearances, and proper mounting guidelines. It also details the supplied accessories, remote‑control battery installation, and basic setup procedures.
Subsequent sections describe the front‑panel controls, remote functions, speaker placement, audio/video connections, automatic tuner setup, zone 2/3 configuration, sound‑field programs, and advanced features such as THX Select, Dolby Digital, and YPAO. A troubleshooting chapter and glossary help resolve common issues.
| Channels | 7‑channel |
|---|---|
| Minimum RMS Output Power (per channel) | 0.04% THD, 20 Hz – 20 kHz, 8 Ω |
| Front Output Power | 120 W + 120 W |
| Center Output Power | 120 W |
| Surround Output Power | 120 W + 120 W |
| Surround Back Output Power | 120 W + 120 W |
Leave at least 30 cm on the top and 20 cm on the left, right, and back of the unit.
Replace the four AAA batteries, inserting them according to the polarity markings in the battery compartment.
Yes, in standby mode the unit consumes a small amount of power to receive infrared signals.
