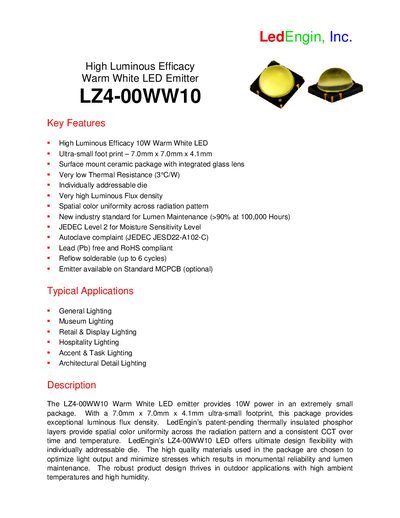

This product is a 10W warm white LED emitter with an ultra-small footprint, low thermal resistance and high luminous flux density.
The LZ4-OOWW10 is a 10 W warm‑white LED emitter with an ultra‑small 7.0 mm × 7.0 mm × 4.1 mm footprint, high luminous flux density and excellent lumen maintenance (>90 % at 100 k h). It is suited for general, museum, retail, hospitality, accent, task and architectural lighting applications and can be mounted on standard or custom MCPCBs.
The datasheet provides detailed optical, electrical and mechanical characteristics, absolute maximum ratings, recommended solder‑pad layout, reflow profile and tape‑and‑reel packaging information, along with moisture‑sensitivity and reliability data for designers and manufacturers.
| Footprint | 7.0 mm × 7.0 mm × 4.1 mm |
|---|---|
| Thermal Resistance (Junction‑to‑Case) | 3 °C/W |
| Maximum DC Forward Current (per die) | 1000 mA |
| Peak Pulsed Forward Current | 1500 mA |
| Forward Voltage @ 1000 mA | 14.6 V |
| Correlated Color Temperature | 3100 K |
| Viewing Angle | 105 ° |
| Total Included Angle | 135 ° |
| Storage Temperature Range | -40 °C to +150 °C |
| Maximum Junction Temperature | 150 °C |
| Maximum Soldering Temperature | 260 °C |
| Allowable Reflow Cycles | 6 |
The emitter measures 7.0 mm × 7.0 mm × 4.1 mm.
The device is rated for up to 6 reflow cycles.
The thermal resistance (junction‑to‑case) is 3 °C/W.
