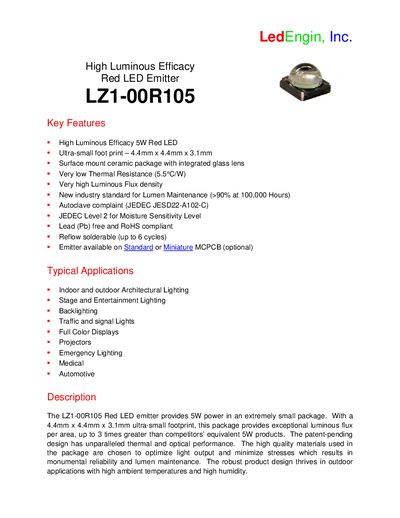

The LZ1-00R105 is a high luminous efficacy red LED emitter with a small footprint and high luminous flux density. It has very low thermal resistance, over 90% lumen maintenance, and complies with JEDEC JESD22-A102-C standard.
The LZ1-00R105 red LED emitter delivers 5 W of power in an ultra‑small 4.4 mm × 4.4 mm × 3.1 mm ceramic package. It is designed for indoor and outdoor architectural lighting, stage and entertainment lighting, backlighting, traffic signals, projectors, emergency lighting, medical and automotive applications.
The datasheet provides full electrical, optical and mechanical data, including forward voltage, luminous flux, thermal resistance, and maximum ratings. It also includes recommended solder pad layouts, reflow soldering profiles, and tape‑and‑reel packaging specifications, along with compliance information such as JEDEC moisture sensitivity level and RoHS compliance.
| Luminous Flux @ 1000 mA | 91 lm |
|---|---|
| Luminous Flux @ 1500 mA | 106 lm |
| Dominant Wavelength | 625 nm |
| Forward Voltage @ 1000 mA | 2.5 V |
| Forward Voltage @ 1500 mA | 2.8 V |
| Thermal Resistance (junction‑to‑case) | 5.5 °C/W |
| Maximum DC Forward Current | 1500 mA |
| Peak Pulsed Forward Current | 2000 mA |
| Maximum Junction Temperature | 125 °C |
| Package Footprint | 4.4 mm × 4.4 mm × 3.1 mm |
The luminous flux is 91 lm at a forward current of 1000 mA.
The forward voltage is 2.8 V at a forward current of 1500 mA.
It can tolerate up to 6 reflow cycles.
It meets JEDEC Level 2 moisture sensitivity level.
