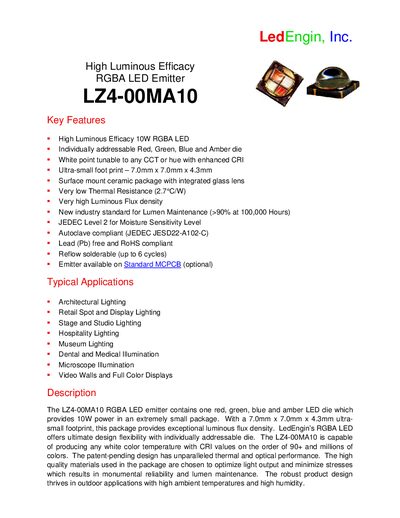

The LZ4-00MA10 is a 10W high-efficiency RGBA LED emitter from LedEngin. It features an ultra-small footprint and high luminous flux density. The product has individually addressable red, green, blue and amber LED dies, and can be tuned to any color temperature or hue with a CRI value of 90+ or more.
The LZ4-00MA10 is a 10 W RGBA LED emitter with an ultra‑small 7.0 mm × 7.0 mm × 4.3 mm footprint. It offers individually addressable red, green, blue and amber dies, high luminous flux density, and a CRI above 90. The device is RoHS‑compliant, moisture‑sensitive level 2, and can be reflow soldered up to six times.
The manual provides detailed product nomenclature, binning tables, electrical and optical characteristics, mechanical dimensions, recommended solder pad layout, reflow profile, and tape‑and‑reel specifications. It also includes absolute maximum ratings and typical radiation patterns for design reference.
| Package dimensions | 7.0 mm × 7.0 mm × 4.3 mm |
|---|---|
| Thermal resistance (junction‑to‑case) | 2.7 °C/W |
| Typical luminous flux (700 mA) | Red 85 Im, Green 115 Im, Blue 30 Im, Amber 60 Im |
The emitter measures 7.0 mm × 7.0 mm × 4.3 mm.
The package has a very low thermal resistance of 2.7 °C/W.
