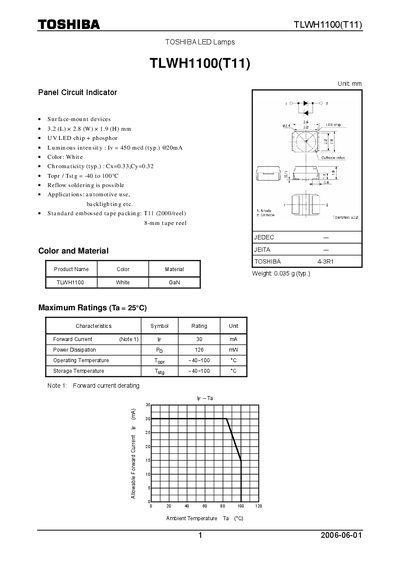

This document is the datasheet of TOSHIBA TLWH1100(T11) LED Lamp. It mainly introduces the size, color, luminous intensity, color, working temperature, storage temperature, weight and other parameters of the lamp.
This handbook details the characteristics of the Toshiba TLWH1100(T11) white LED, including its electrical parameters such as forward current, voltage, and power dissipation, as well as optical data like luminous intensity and chromaticity. It also outlines maximum ratings, storage and operating temperature ranges, and notes on UV light emission.
The document describes recommended handling, packaging, and soldering procedures, including moisture‑proof storage, reflow soldering temperature profiles, and cleaning solvents. Packing information, tape and reel dimensions, and usage restrictions for safety‑critical applications are also provided.
| Forward Current (IF) | 30 mA |
|---|---|
| Power Dissipation (Pp) | 126 mW |
| Operating Temperature (Topr) | -40~100 °C |
| Storage Temperature (Tstg) | -40~100 °C |
| Luminous Intensity (typ.) | 450 mcd |
The LED should be stored at temperatures between –40 °C and 100 °C.
Yes, reflow soldering is possible using the specified temperature profile (e.g., 140–160 °C peak, 240 °C max).
Toshiba recommends ASAHI CLEAN AK‑225AES, KAO CLEAN TROUGH 750H, PINE ALPHA ST‑1008, and TOSHIBA TECHNOCARE solvents.
The LEDs are packed in an aluminum envelope with silica gel and a moisture‑proof bag.
