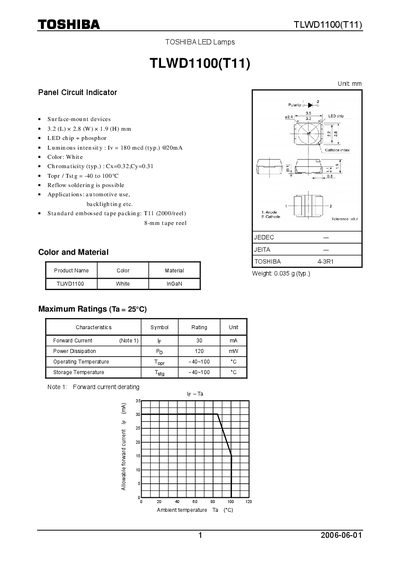

TLWD1100 (T11) is a panel circuit indicator in TOSHIBA's LED Lamp series. It is a surface mount device with dimensions of 3.2 (L) × 2.8 (W) × 1.9 (H) mm. It has a luminous intensity of 180 mcd, color white, and a typical chromaticity of Cx=0.32,Cy=0.31. It has a temperature range of Topr / Tstg = -40 to 100°C and can be reflow soldered. It is suitable for automotive use, backlighting, etc.
This handbook describes the TLWD1100 (T11) white InGaN LED from Toshiba. It lists the device's electrical characteristics such as forward current, forward voltage and power dissipation, as well as optical data including luminous intensity and chromaticity coordinates. Packaging details, recommended soldering profiles, and moisture‑proof handling procedures are also included.
Additional sections cover storage requirements, cleaning solvents, tape and reel dimensions, labeling, and restrictions on product use. The document is intended for designers and manufacturers integrating the LED into automotive, backlighting, and other general electronics applications.
| Forward Current (IF) max | 30 mA |
|---|---|
| Power Dissipation (Pp) | 120 mW |
| Operating Temperature (Topr) | -40 °C to 100 °C |
| Chromaticity Cx | 0.32 |
| Storage Temperature (Tstg) | -40 °C to 100 °C |
The maximum forward current is 30 mA.
