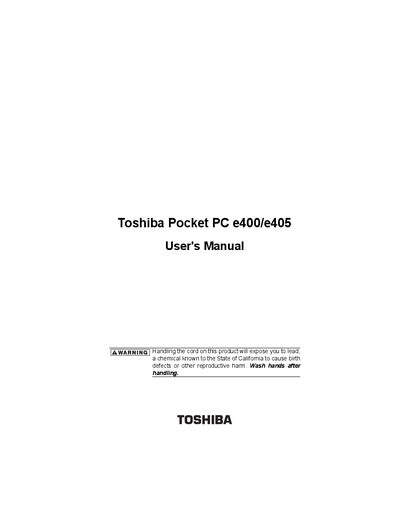

This document is the user's manual for Toshiba Pocket PC e400/e405. The document provides instructions for correct usage of the product and important safety issues. It also warns users about the presence of lead in the product, which can cause birth defects or reproductive harm.
This manual introduces the Toshiba Pocket PC e400/e405 and outlines essential safety precautions, handling instructions, and warnings to prevent injury, property damage, and device malfunction. It covers topics such as battery safety, AC adaptor use, RF emission restrictions, and proper storage conditions.
The document also lists the Pocket PC's technical specifications, including dimensions, operating temperature ranges, battery type, processor, memory, display, interfaces, and audio capabilities, helping users understand the device's performance limits and compatible accessories.
| External dimensions | 49 in. (125 mm) x 3.0 in (76 mm) x 0.49 in. (12.5 mm) |
|---|---|
| Operating temperature (use) | 32°F to 104°F (0°C to 40°C) |
| Operating temperature (charging) | 41°F to 104°F (5°C to 40°C) |
| Battery type | Lithium‑ion battery |
| Processor | Intel® PXA261 at 300 MHz |
| RAM | 64 MB |
| ROM | 16 MB |
| Flash ROM Disk | 32 MB |
| Display | 3.5" TFT Color LCD, 240 × 320 pixels, up to 64K colors |
| Headphone jack | 3.5 mm stereo mini‑plug |
| SD card slot | Supports SD, SDIO, Multimedia cards |
| Infrared port | IrDA v1.3, 115 kbps max |
| Cradle connection port | USB Host/Client |
| Audio codec | AC‑97, mono record, stereo playback, up to 44.1 kHz |
It uses a lithium‑ion battery.
The Pocket PC is powered by an Intel® PXA261 processor running at 300 MHz.
The device measures approximately 49 in. × 3.0 in. × 0.49 in. (125 mm × 76 mm × 12.5 mm).
