This product is an 8.4-inch SVGA color display with high brightness (350cd/m2), wide viewing angle and wide operating temperature. It also has a built-in long life CCFL (MTBF: 50,000 h) and a replaceable lamp unit structure.

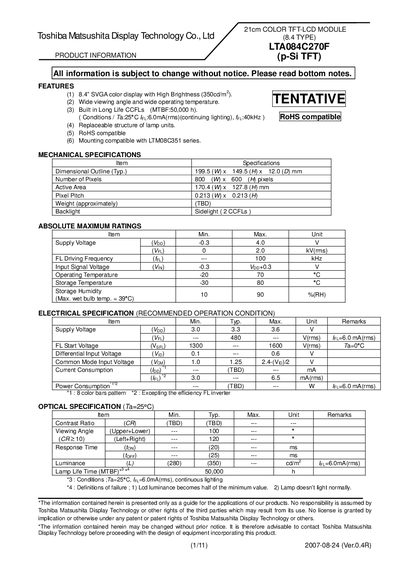

The Toshiba LTA084C270F handbook provides detailed mechanical, electrical and functional specifications for the 8.4" SVGA LCD module. It includes dimensions, supply requirements, backlight details, timing charts, connector pin assignments and recommended transmitter interfaces.
Safety and handling instructions are also covered, outlining warnings about disassembly, high‑voltage hazards, and proper disposal. The document is intended for designers and integrators who need precise data for system design.
| Display size | 8.4" SVGA |
|---|---|
| Resolution | 800 x 600 pixels |
| Supply voltage (typical) | 3.3 V |
| Operating temperature | -20 °C to 70 °C |
| Backlight type | 2 CCFLs |
| MTBF | 50,000 h |
| Absolute max supply voltage (Vop) | -0.3 V to 4.0 V |
The recommended supply voltage (Von) is 3.3 V (typical).
The absolute maximum supply voltage (Vop) ranges from –0.3 V to 4.0 V.
The lamp unit of LTA084C270F can be used for LTM08C351L, but not the other way around.
Disconnect the power supply and do not disassemble or modify the module to avoid damage and electric shock.
