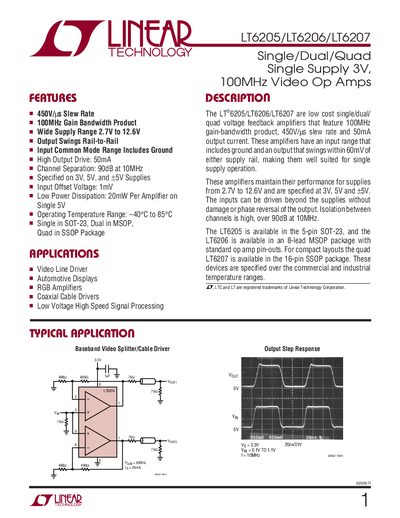

LT6205/LT6206/LT6207 are low cost single/dual/ quad voltage feedback amplifiers that feature 100MHz gain-bandwidth product, 450V/µs slew rate and 50mA output current.
The LT6205, LT6206, and LT6207 are low‑cost single, dual, and quad voltage‑feedback amplifiers offering a 100 MHz gain‑bandwidth product, 450 V/µs slew rate, and 50 mA output drive. They operate from 2.7 V to 12.6 V supplies, feature rail‑to‑rail output swings, and include ground‑referenced input common‑mode range.
The devices are offered in compact packages (LT6205 in SOT‑23, LT6206 in MSOP, LT6207 in SSOP) and include detailed electrical characteristics, absolute maximum ratings, and typical performance graphs. Typical applications include video line drivers, automotive displays, RGB amplifiers, and coaxial cable drivers.
| Slew Rate | 450 V/µs |
|---|---|
| Gain Bandwidth Product | 100 MHz |
| Supply Voltage Range | 2.7 V to 12.6 V |
| Output Drive Current | 50 mA |
| Input Offset Voltage (typical) | 1 mV |
| Channel Separation | 90 dB at 10 MHz |
| Operating Temperature Range | –40 °C to 85 °C |
| Power Dissipation per Amplifier | 20 mW (single 5 V) |
They operate from –40 °C to 85 °C.
Typical input offset voltage is 1 mV.
