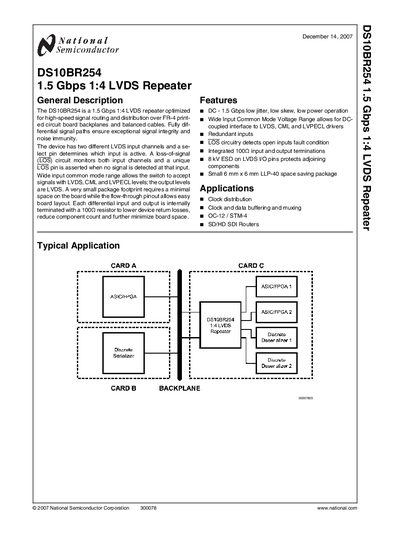

The DS10BR254 is a 1.5 Gbps 1:4 LVDS repeater optimized for high-speed signal routing and distribution over FR-4 print- ed circuit board backplanes and balanced cables.
The DS10BR254 is a 1.5 Gbps 1:4 LVDS repeater optimized for high‑speed signal routing and distribution over FR‑4 printed‑circuit‑board backplanes and balanced cables. It features two LVDS input channels, a select pin to choose the active input, and loss‑of‑signal detection.
Key features include integrated 100 Ω input and output terminations, a compact 6 mm × 6 mm LLP‑40 package, low jitter and skew, and ESD protection up to 8 kV. Typical applications are clock distribution, data buffering, and SD/HD‑SDI routing.
| Maximum Data Rate | 1.5 Gbps |
|---|---|
| Number of LVDS Inputs | 2 |
| Number of LVDS Outputs | 4 |
| Integrated Termination Resistance | 100 Ω |
| Package Size | 6 mm × 6 mm LLP‑40 |
| Supply Voltage (VDD) | 3.0 V – 3.6 V |
| Power‑Down Supply Current | 50 mA – 60 mA |
| Differential Propagation Delay (Low‑to‑High) | 440 ps – 650 ps |
| Total Jitter (Typical) | 0.01 UI – 0.03 UI |
The DS10BR254 supports up to 1.5 Gbps data rates.
It provides two LVDS input channels.
Each differential input and output includes a 100 Ω termination resistor.
The device operates from 3.0 V to 3.6 V.
