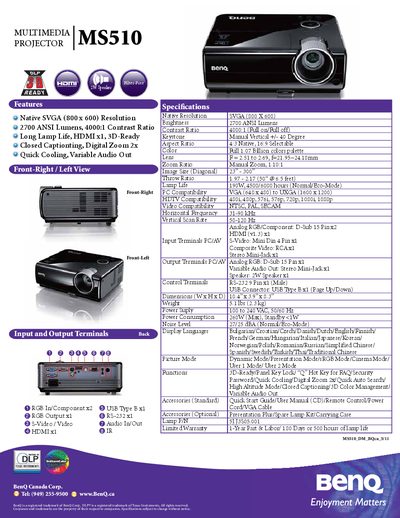

MS510 is a multimedia projector released by BenQ, with 800x600 resolution, 2700 ANSI lumens brightness, 4000:1 contrast ratio, HDMI interface, 3D compatibility and other features
This manual covers the BenQ MS510 multimedia projector, detailing its key features such as 2700 ANSI lumens brightness, 4000:1 contrast ratio, 3D‑Ready capability, and a range of input/output options. It serves as a guide for setup, operation, and maintenance of the projector.
The document includes sections on technical specifications, control terminals, dimensions, power requirements, supported display languages, picture modes, functions, standard and optional accessories, lamp part number, and warranty information.
| Native Resolution | SVGA (800 × 600) |
|---|---|
| Brightness | 2700 ANSI Lumens |
| Contrast Ratio | 4000:1 |
| Throw Ratio | 1.97 – 2.17 (50° @ 6.5 ft) |
| Power Consumption | 260 W max, standby <1 W |
| Noise Level | 27 dBA (Normal) / 25 dBA (Eco‑Mode) |
| Dimensions (W × H × D) | 10.4 in × 3.9 in × 8.3 in |
| Weight | 5.1 lb (2.3 kg) |
The projector provides HDMI (v1.3) x1, two D‑Sub 15‑pin RGB/component inputs, USB Type‑B, S‑Video, and audio in/out jacks.
It consumes up to 260 W while operating and less than 1 W in standby.
