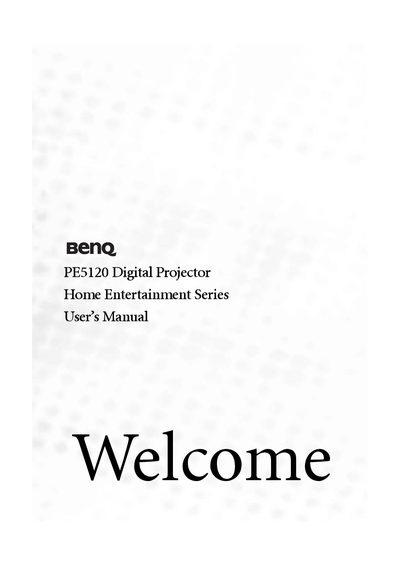

This user manual mainly introduces the features and usage of the PE5120 projector.
This manual guides you through installing, configuring, and using the BenQ PE5120 digital projector. It covers safety precautions, mounting options, connection procedures, on‑screen menu navigation, image adjustment, and lamp replacement.
Additional sections include detailed specifications, accessory part numbers, and a troubleshooting guide to resolve common issues such as power problems, remote‑control operation, and image quality concerns.
| Projection system | Single-chip DLP™ system |
|---|---|
| DMD chip | 0.53” DMD 480P (854 x 480) |
| Lens zoom ratio | 1.22‑times |
| Projection size | 31 to 300 inches |
| Lamp power | 200 W |
| Color system | NTSC / PAL‑M / PAL‑N / PAL‑60 / SECAM |
| Resolution | SXGA, XGA, SVGA, VGA, Macintosh®, HDTV (1080i, 720p, 576p, 576i, 480p, 480i) |
| Maximum colors | 16,770,000 |
| Dimensions (W × H × D) | 262 mm × 99 mm × 216 mm |
| Weight | 6.4 lb / 2.9 kg |
| Power input | 100‑240 V AC, 3.2 A, 50/60 Hz |
| Power consumption | 285 W (max) |
| Operating temperature | -40 °C |
| Operating humidity | 10 % – 90 % (non‑condensing) |
| Operating altitude | 6 000 ft at 30 °C, 6 000‑10 000 ft at max 23 °C |
| Storage temperature | -10 °C to 60 °C |
| Storage humidity | 10 % – 90 % |
Plug the power cord into the projector’s AC inlet and into a switched power outlet, then ensure the outlet is on.
The remote works reliably within 8 meters (about 26 feet) of the projector.
Allow the projector to cool for approximately 45 minutes before removing the lamp assembly.
