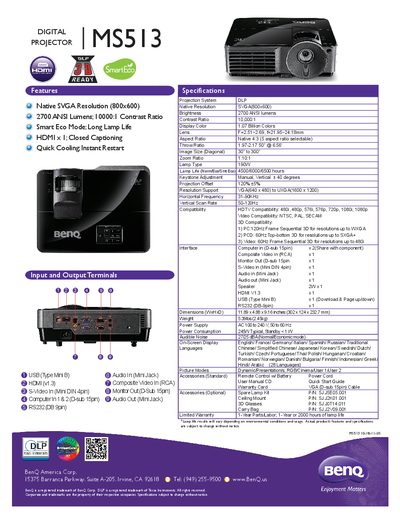

The document describes the features and characteristics of the product.
The MS513 is a DLP‑based digital projector with native SVGA (800×600) resolution and a brightness of 2700 ANSI lumens. It offers a high contrast ratio of 10,000:1, 1.07 billion display colors, and flexible lens and throw specifications for screen sizes from 30" to 300".
Key features include HDMI 1.3, USB mini‑B, RS‑232, dual D‑sub video inputs, S‑Video, composite video, audio in/out, and built‑in speakers. The projector supports multiple picture modes, 28 on‑screen display languages, and both 2D and 3D video formats. Standard accessories are a remote control, power cord, user‑manual CD, and quick‑start guide, with optional lamp kits and ceiling‑mount hardware.
| Brightness | 2700 ANSI lumens |
|---|---|
| Contrast Ratio | 10,000:1 |
| Native Resolution | SVGA (800×600) |
| Lamp Life | 4500/6000/6500 hours |
| Throw Ratio | 1.97‑2.17 |
| Zoom Ratio | 1.10‑3.1 |
| Power Consumption (Typical) | 245 W |
| Dimensions (W×H×D) | 11.89 × 4.88 × 9.16 in (302 × 124 × 232.7 mm) |
| Weight | 5.30 lb (2.45 kg) |
The lamp life is rated at 4500, 6000, or 6500 hours depending on the mode.
The projector offers Dynamic, Presentation, RGB, Cinema, User 1 and User 2 picture modes.
Yes, an optional ceiling‑mount part (P/N: 5J.J2K01.001) is listed.
