Origen S21T is a HTPC enclosure from Origen. The enclosure supports ATX and micro full size motherboards, and can accommodate 10 3.5-inch internal hard drives and 1 5.25-inch external hard drive. The enclosure also comes with a 120mm low noise exhaust fan, 2 92mm low noise intake fans and a 120mm low noise extractor module.

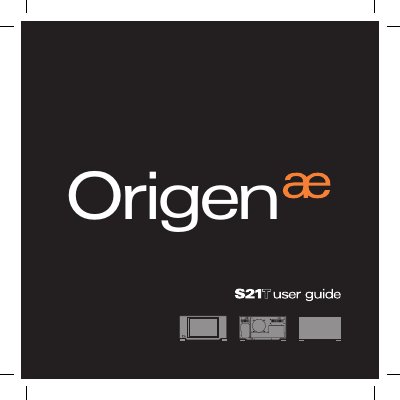

This manual covers the Origen S21T HTPC enclosure, a compact all‑aluminium chassis with a 12.1" touch screen, designed for ATX and micro‑ATX motherboards. It includes hardware specifications, wiring diagrams, and detailed procedures for assembling and configuring the system.
Key sections guide you through opening the case, installing the motherboard tray, mounting drives, connecting the VGA/IR bracket, and setting up the touch‑panel software. The document also describes the front I/O ports, multi‑format card reader, and optional IR controller, helping users get the enclosure fully operational.
| Construction material | All aluminium chassis |
|---|---|
| Screen size | 12.1" (16:10 ratio) |
| Net weight | 9.8 kg |
| Power consumption | 9 W (12 V DC input) |
The front panel provides two USB 2.0 ports, one IEEE 1394 (FireWire) port, a multi‑format card reader, a headphone (HD & AC97) jack, and a microphone (HD & AC97) jack.
