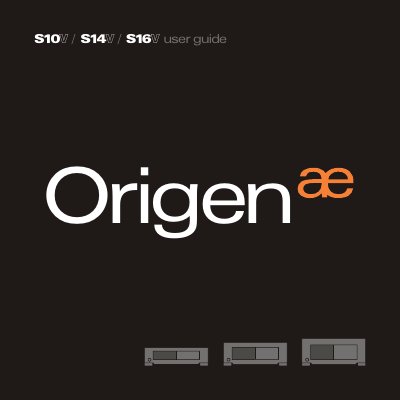

This document is the user guide for Origen S10V / S14V / S16V, introducing the features and characteristics of Origen's HTPC enclosure products, including opening the case, installing hard drives, installing optical disk drives, installing IR Blaster, installing multi-format card readers and I/O ports, installing VFD/IR software, etc.
This manual covers the Origen HTPC enclosure series (S10V, S14V, S16V). It includes an overview of the chassis features, such as the power button, LED ring, VFD/IR module, exhaust fans, and I/O ports, as well as detailed diagrams of internal PCBs and cable routing.
Installation sections guide users through opening the case, mounting hard drives, installing the optical disk drive, fitting the IR blaster and auxiliary access slot, connecting the multi‑format card reader, and setting up the VFD/IR software. Optional accessories like the IR kit and additional hard‑drive mount are also described.
| Maximum hard drives | 4 (optional 5th with HM100) |
|---|---|
| Optional fifth drive mount | HM100 hard drive mount (optional) |
| Exhaust fans | 2 x 60mm low dB exhaust fans |
| VFD/IR module | VF210 |
| Optional IR kit | IR221 |
The S14V supports up to four hard drives, and a fifth drive can be added with the optional HM100 mount.
Remove the top fixing screw, unclip the existing plastic bezel, then slide the optical disk drive through the front of the cage and secure it with the fixing screws.
Download the latest IR Trans software from the Origen website as described in the installation section.
