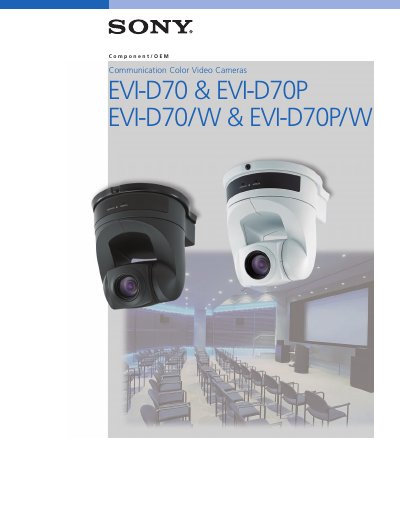

Sony EVI-D70 and EVI-D70P/W are four new high-quality color video cameras from Sony that offer remote pan/tilt/zoom operation, compact size and ease of use. These two cameras have a 216x zoom ratio (18x optical, 12x digital) and a wide range of pan/tilt zoom, which can meet various application scenarios.
The Sony EVI-D70 series includes four color video cameras (EVI-D70, EVI-D70P, EVI-D70/W, EVI-D70P/W) designed for remote pan/tilt/zoom operation. They are available in black or white housings and can be ceiling‑mounted or placed on a desktop.
Key features include an 18× optical zoom lens, wide‑range high‑speed pan/tilt, RS‑232C/RS‑422 serial control (VISCA), Auto ICR, alarm function, daisy‑chain capability for up to seven cameras, and six‑position presets. The manual details specifications, rear‑panel functions, and setup instructions.
| Zoom Ratio | 216x (18x Optical, 12x Digital) |
|---|---|
| Minimum Illumination | 1 lx (F1.4) |
| Horizontal Resolution | 470 TV lines (wide end) |
| Pan Range | ±170° (max speed 100°/s) |
| Tilt Range | -30° to +90° (max speed 90°/s) |
| Power Consumption | 12 W |
| Dimensions | 5 1/4 x 5 3/4 x 5 3/4 inches (132 x 144 x 144 mm) |
| Preset Positions | 6 positions |
| Daisy Chain Capability | Up to seven cameras |
Up to seven cameras can be linked in a daisy chain.
The camera can be controlled via RS‑232C or RS‑422 using VISCA commands.
The camera works with a minimum illumination of 1 lx at F1.4.
