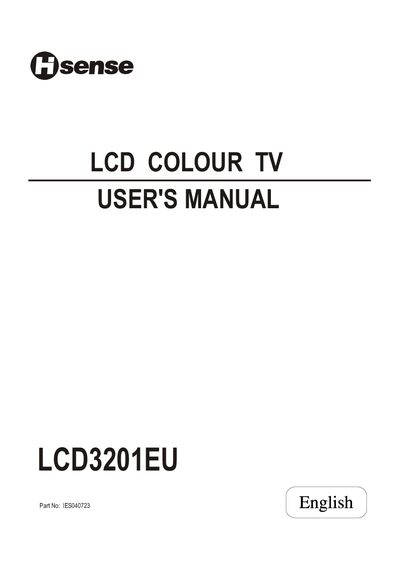

This is a user manual introducing the use of Hisense LCD TV LCD3201EU.
This manual guides you through the safe installation and operation of the Hisense LCD3201EU television. It includes important safety safeguards, preparation steps, and instructions for using the front panel and remote control.
The guide also details all available input and output connections (AV, S‑Video, HDMI, VGA, SCART, antenna, etc.), remote control functions, and the TV's technical specifications such as screen size, resolution, power consumption, and dimensions.
| Screen size | 32.0 inches |
|---|---|
| Resolution | 1280×768 |
| Contrast ratio | 500:1 |
| Brightness | 450 cd/m² |
| Viewing angles | 170°(H) / 170°(V) |
| Power source | AC100V–240V, 50/60Hz |
| Power consumption | 145 W |
| Audio output | SW+5SW |
| RF input | Cable/antenna X1 |
| Dimensions | 39 in × 23 in × 8.7 in |
| Weight | 24 Kg |
Open the battery cover on the back of the remote, insert two AAA (1.5 V) batteries matching the polarity signs, and close the cover.
