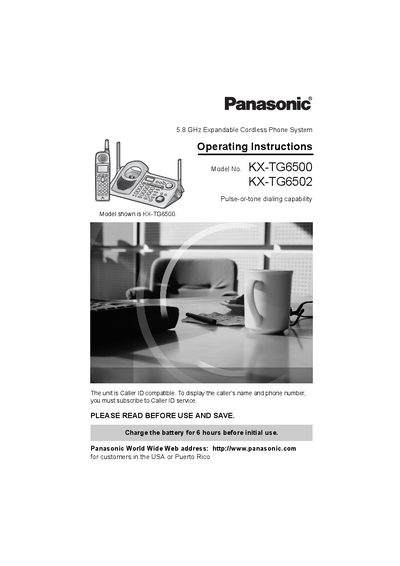

This document provides operating instructions for the Panasonic KX-TG6500 KX-TG6502 5.8 GHz Expandable Cordless Phone System. The phone has pulse or tone dialing capability and is Caller ID compatible, requiring a subscription to Caller ID service. The document also includes information on battery charging time and important safety instructions. The included accessory is an AC adapter.
This manual covers the 5.8 GHz expandable cordless phone system, including the base unit, handset(s), charger, and optional accessories. It explains how to expand the system with up to four handsets, register extensions, and use features such as Caller ID, Call Waiting, and the answering system.
Detailed operating instructions are provided for battery charging, installing the battery, connecting the AC adaptor and telephone line, programmable settings, dialing modes, and special functions like voice paging, conference calls, and call privacy. Safety information, FCC compliance, and service procedures are also included. This manual is written in Chinese.
| Handset Power Supply | Ni‑MH battery (3.6 V, 830 mAh) |
|---|---|
| Handset Frequency | 5.76 GHz – 5.84 GHz |
| Handset Dimensions | 220 mm × 53 mm × 37 mm |
| Handset Weight | 210 g (0.46 lb) |
| Base Unit Power Supply | AC adaptor (120 V AC, 60 Hz) |
| Base Unit Power Consumption | Standby ~2.7 W, Maximum ~6.5 W |
| Base Unit Frequency | 5.76 GHz – 5.84 GHz |
| Base Unit Dimensions | 107 mm × 251 mm × 135 mm |
| Base Unit Weight | 520 g (1.15 lb) |
| Charger Power Supply (KX‑TG6502 only) | AC adaptor (120 V AC, 60 Hz) |
| Charger Power Consumption | Standby ~0.8 W, Maximum ~4.0 W |
| Dialing Mode | Tone (DTMF) / Pulse |
| Operating Environment | 5 °C – 40 °C (41 °F – 104 °F) |
Charge the battery for 6 hours before initial use.
A maximum of 4 handsets can be registered to the base unit.
The system operates on 5.76 GHz to 5.84 GHz.
The handset uses a 830 mAh Ni‑MH battery.
