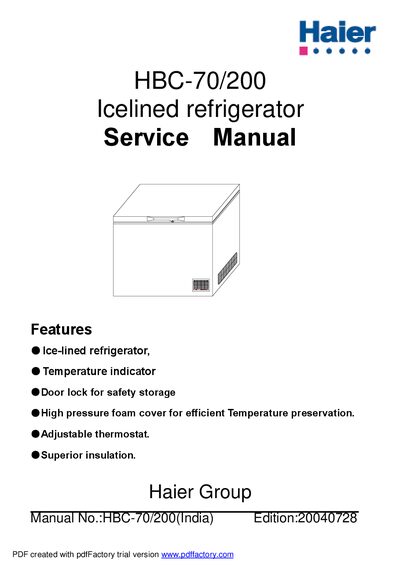

This document is the service manual for the HBC-70/200 ice-lined refrigerator, which describes the features and characteristics of the refrigerator, such as temperature indicator, door lock for safety storage, high pressure foam cover for efficient temperature preservation, and adjustable thermostat.
This service manual provides detailed information on the Haier HBC-70/200 ice‑lined refrigerator, including its key features such as a temperature indicator, door lock, high‑pressure foam cover and adjustable thermostat. It also lists the technical specifications for both the 70 L and 200 L capacity models.
The document includes safety precautions, recommended installation clearances, electrical requirements, a parts list, system flow charts, circuit diagrams and step‑by‑step troubleshooting procedures to help service technicians maintain and repair the unit.
| Capacity (L) | 70 / 200 |
|---|---|
| Power Supply (V/Hz) | 220 V / 50 Hz |
| Unit Dimension (W×D×H) (mm) | 673×633×810 (HBC‑70) / 1243×633×810 (HBC‑200) |
| Unit Weight (kg) | 69 (HBC‑70) / 100 (HBC‑200) |
Leave at least 2 inches (50 mm) on each side, the back and the top of the unit.
No, the refrigerator is designed for freestanding installation only.
A 220 V, 50 Hz outlet with proper grounding is required.
The HBC‑70 model has a 70 liter capacity.
