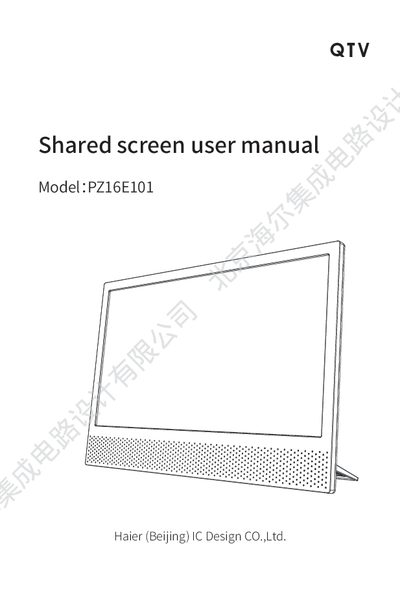

The Haier PZ16E101 Shared Screen User Manual provides setup, operation, specifications, and safety information for the 15.6‑inch portable LCD screen.
This manual introduces the Haier PZ16E101 shared screen, a 15.6‑inch portable LCD that supports Android, iOS, and tablet devices for screen mirroring, video projection, multimedia playback, HDMI input, IPTV, and YouTube. It includes a product list, wiring diagram, remote‑control functions, menu navigation, and detailed function instructions.
The guide also covers technical specifications, warranty terms, and battery safety precautions, helping users install, operate, and maintain the device safely and efficiently.
| Screen size | 15.6 inches |
|---|---|
| Screen resolution | 1920×1080 / 1366×768 |
| Refresh rate | 50/60 Hz |
| Storage capacity | 1 Gb DDR, 1 Gb Flash |
| Input interfaces | USB ×1, HDMI ×1, Type‑C power supply ×1, 3.5 mm headphone jack ×1 |
| Dimensions (closed) | 346 mm × 195 mm |
Select the Miracast item from the main menu on the screen, then turn on the wireless display function on the phone; the phone will automatically search for the device named PINZHI_9465 and connect to it.
The product includes a 7‑day return/repair period, a 15‑day exchange/repair period, and a 1‑year warranty from the date of purchase, with several exclusions listed.
