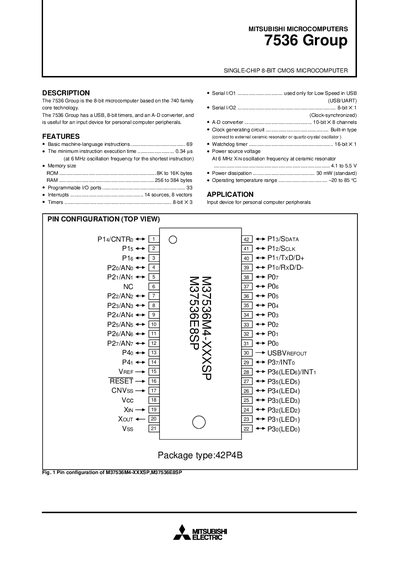

The 7536 Group is an 8-bit microcomputer based on the 740 family core technology. It features USB, 8-bit timers, and an A-D converter, making it useful as an input device for personal computer peripherals.
The 7536 Group is an 8‑bit CMOS microcomputer based on the 740 family core. It integrates a USB interface, 8‑bit timers, a 10‑bit A‑D converter with eight channels, and programmable I/O ports, making it suitable for input devices for PC peripherals. The document provides a functional block diagram, pin configuration, and detailed register maps.
Key sections include a description of the CPU instruction set, memory organization, pin functions, package dimensions, and a revision history. The data sheet also outlines expansion options for ROM and RAM sizes and lists supported product variants such as M37536M4‑XXXSP and M37536E8SP.
| Minimum instruction execution time | 0.34 µs (at 6 MHz) |
|---|---|
| Power dissipation | 30 mW (standard) |
| Operating temperature range | -20 °C to 85 °C |
| Package type | 42‑pin plastic SDIP (42P4B) |
| ROM size | 8 K to 16 K bytes |
The standard power dissipation is 30 mW.
It operates from –20 °C up to 85 °C.
The device is supplied in a 42‑pin plastic SDIP package.
The minimum instruction execution time is 0.34 µs.
