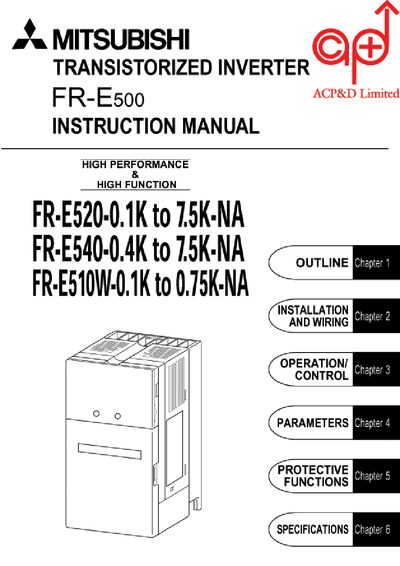

This is a Mitsubishi frequency inverter product manual
This manual covers all aspects of the Mitsubishi FR‑E500 transistorized inverter, including safety instructions, installation procedures, wiring diagrams, and detailed operation controls. It also contains parameter settings, troubleshooting tips, and maintenance recommendations to ensure reliable performance.
The document includes environmental limits, such as operating temperature, humidity, storage conditions, and altitude restrictions, as well as compliance information for U.S., Canadian, and European electrical codes.
| Operating temperature range | -10°C to +50°C |
|---|---|
| Maximum ambient humidity | 90% RH or less |
| Storage temperature range | -20°C to +65°C |
| Maximum operating altitude | 1000 m (3280 ft) |
Read the entire manual, ensure the power is off, wait at least 10 minutes, check for residual voltage, and earth the inverter before any wiring or inspection.
Mount the inverter and brake resistor on an incombustible surface, keep it away from combustible materials, and ensure proper ventilation and cooling.
