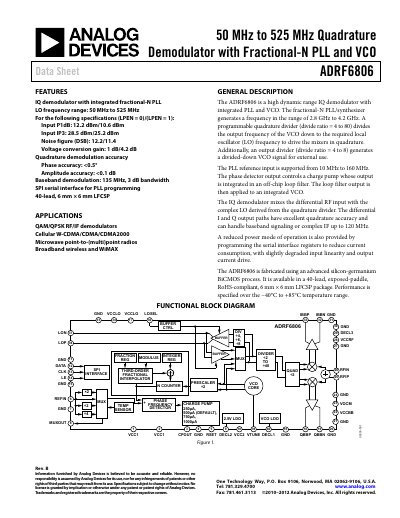

The ADRF6806 is a high dynamic range IQ demodulator with integrated PLL and VCO.
The ADRF6806 IQ demodulator integrates a fractional‑N PLL and VCO to provide a local‑oscillator frequency from 50 MHz to 525 MHz. It offers high quadrature accuracy (<0.5° phase error, <0.1 dB amplitude imbalance) and supports both standard and low‑power modes.
The device is supplied in a 40‑lead, 6 mm × 6 mm LFCSP package, operates from –40 °C to +85 °C, and requires 5 V (VCCBB/VCCRF) and 3.3 V (VCC1/VCC2/VCCLO) supply rails. Detailed specifications, pin descriptions, timing characteristics, and typical performance graphs are provided throughout the sheet.
| LO frequency range | 50 MHz to 525 MHz |
|---|---|
| Input P1dB (standard power mode) | 12.2 dBm |
| Input IP3 (standard power mode) | 28.5 dBm |
| Voltage conversion gain (standard power mode) | 1 dB |
| Quadrature phase accuracy | <0.5° |
| Amplitude accuracy | <0.1 dB |
| Supply voltage (VCCBB/VCCRF) | 4.75 V – 5.25 V |
| Supply voltage (VCC1/VCC2/VCCLO) | 3.135 V – 3.465 V |
| Operating temperature range | −40 °C to +85 °C |
| Package | 40‑lead LFCSP, 6 mm × 6 mm |
The device covers a local‑oscillator frequency range from 50 MHz to 525 MHz.
It needs 5 V for VCCBB/VCCRF (4.75 V – 5.25 V) and 3.3 V for VCC1/VCC2/VCCLO (3.135 V – 3.465 V).
The input 1 dB compression point is 12.2 dBm.
It operates from –40 °C up to +85 °C.
