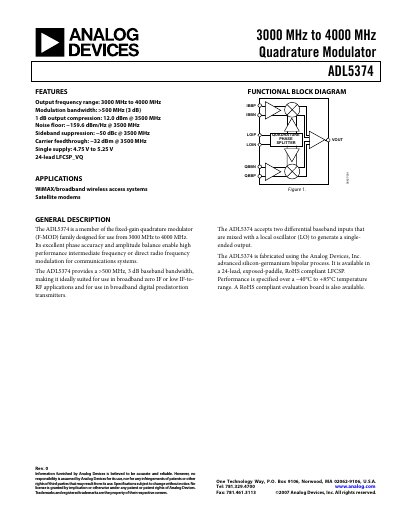

The ADL5374 is a fixed‑gain quadrature modulator designed for operation from 3000 MHz to 4000 MHz. It provides a single‑ended RF output, accepts differential I/Q baseband inputs, and is supplied from a single 4.75 V to 5.25 V rail. The device is offered in a 24‑lead LFCSP package and is RoHS compliant.
Typical performance includes >500 MHz 3 dB bandwidth, sideband suppression of –50 dBc, carrier feedthrough around –35 dBm, and a 1 dB compression point near 12 dBm. The datasheet also details pin functions, absolute maximum ratings, recommended power‑supply layout, and evaluation‑board options.
| Operating frequency range | 3000 MHz – 4000 MHz |
|---|---|
| Supply voltage (operating) | 4.75 V to 5.25 V |
| Supply voltage (absolute maximum) | 5.5 V |
| Output power (typical) | 5.6 dBm |
| 1 dB compression point (P1dB) | 12.5 dBm |
| Carrier feedthrough | −35 dBm (typical) |
| Sideband suppression | −50 dBc |
| Quadrature error | 0.1 ° |
| I/Q amplitude balance | 0.012 dB |
| Operating temperature range | −40 °C to +85 °C |
The ADL5374 operates from 3000 MHz to 4000 MHz.
It requires a single supply of 4.75 V to 5.25 V for normal operation.
Typical sideband suppression is −50 dBc.
The device is rated for operation up to +85 °C.
