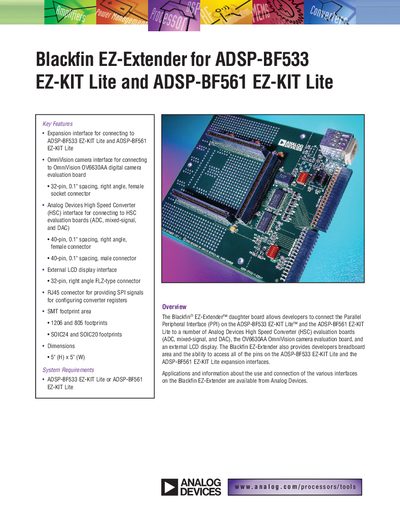

The Blackfin EZ-Extender can connect to ADSP-BF533 EZ-KIT Lite and ADSP-BF561 EZ-KIT Lite, providing expansion interface, OmniVision camera interface, Analog Devices High Speed Converter interface, external LCD display interface and other interfaces
The Blackfin EZ‑Extender™ daughter board provides developers with additional connectors to link the Parallel Peripheral Interface (PPI) of the ADSP‑BF533 EZ‑KIT Lite™ and ADSP‑BF561 EZ‑KIT Lite to High Speed Converter evaluation boards, an OmniVision OV6630AA camera board, and an external LCD display. It also offers extra breadboard area and full access to all pins on the EZ‑KIT Lite expansion interfaces.
Key features include a 32‑pin 0.1" right‑angle female socket, 40‑pin female and male connectors, an external LCD 32‑pin FLZ‑type connector, an RJ45 SPI connector, and various footprints for SMT components. The board is sized 5" × 5" and is part of the Analog Devices CROSSCORE® Tools product line.
| 32‑pin connector | 0.1" spacing, right angle, female socket |
|---|---|
| 40‑pin female connector | 0.1" spacing, right angle, female |
| 40‑pin male connector | 0.1" spacing, male |
| External LCD connector | 32‑pin, right angle FLZ‑type |
| RJ45 SPI connector | Provides SPI signals for configuring converter registers |
It works with the ADSP‑BF533 EZ‑KIT Lite and the ADSP‑BF561 EZ‑KIT Lite.
