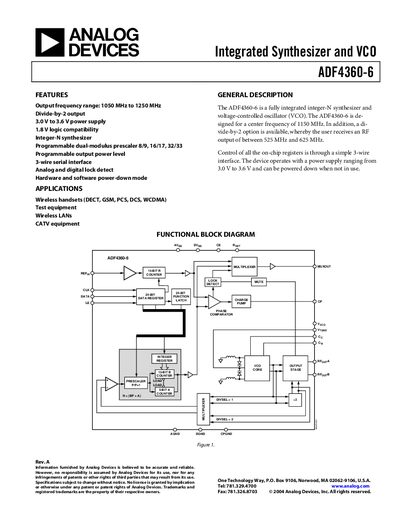

The ADF4360-6 is a fully integrated integer-N synthesizer and voltage-controlled oscillator (VCO). The ADF4360-6 is designed for a center frequency of 1150 MHz. In addition, a divide-by-2 option is available, whereby the user receives an RF output of between 525 MHz and 625 MHz. Control of all the on-chip registers is through a simple 3-wire serial interface.
The ADF4360-6 is a fully integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) designed for a center frequency of 1150 MHz with an optional divide‑by‑2 output yielding 525 MHz to 625 MHz. It operates from a 3.0 V to 3.6 V supply, supports 1.8 V logic, and is controlled via a simple 3‑wire serial interface.
Typical applications include wireless handsets (DECT, GSM, PCS, DCS, WCDMA), test equipment, wireless LANs, and CATV equipment. The device is offered in a 24‑lead chip‑scale package with various ordering options.
| Output frequency range | 1050 MHz to 1250 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Logic compatibility voltage | 1.8 V |
| Phase‑noise (100 kHz offset) | -110 dBc/Hz typ |
| Output power range | -13.5 dBm to -4.5 dBm |
| Operating temperature range | -40°C to +85°C |
The device covers 1050 MHz to 1250 MHz, with a divide‑by‑2 option giving 525 MHz to 625 MHz.
It operates from a 3.0 V to 3.6 V power supply.
All on‑chip registers are accessed through a simple 3‑wire serial interface.
It is rated for -40 °C to +85 °C operation.
