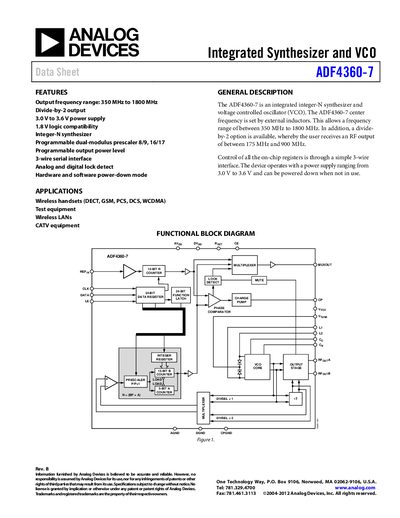

The ADF4360-7 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO) from Analog Devices. It offers a frequency range of 350 MHz to 1800 MHz, a power supply voltage of 3.0 V to 3.6 V, 1.8 V logic compatibility, a programmable dual-modulus prescaler 8/9, 16/17, a programmable output power level, a 3-wire serial interface, analog and digital lock detect, and hardware and software power-down mode.
The ADF4360-7 is an integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) that provides an output frequency range of 350 MHz to 1800 MHz, with an optional divide‑by‑2 output for 175 MHz to 900 MHz. It operates from a 3.0 V to 3.6 V supply, supports 1.8 V logic levels, and is programmed via a simple 3‑wire serial interface.
The document includes detailed specifications, timing characteristics, absolute maximum ratings, pin configuration and function descriptions, typical performance curves, and application notes such as wireless handsets, test equipment, and CATV equipment. It also provides design guidelines for PCB layout and output matching.
| Output frequency range | 350 MHz to 1800 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Logic compatibility | 1.8 V |
| Divide‑by‑2 output | Enabled |
| Phase detector maximum frequency | 8 MHz |
| Output power range | -14 dBm to -5 dBm |
| Operating temperature range | -40 °C to +85 °C |
The device covers an output frequency range of 350 MHz to 1800 MHz.
It operates from a 3.0 V to 3.6 V power supply.
All on‑chip registers are controlled through a simple 3‑wire serial interface.
The phase detector can operate up to 8 MHz.
