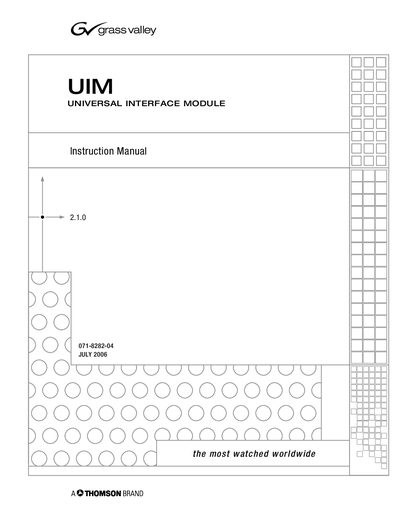

Thomson Universal Interface Module (UIM) User Manual

This document is the instruction manual of UIM UNIVERSAL INTERFACE MODULE

Brand: THOMSON
Document type: User Manual
Language: English
Pages: 160
File format: PDF
File size: 3.2 MB
Published: 03 May, 2012
Updated: 30 September, 2023
MD5 checksum: 25FE55C874DD0FF7DC9599181F5304CB
PDF: Thomson Universal Interface Module (UIM) User Manual PDF

About this manual

This manual describes the Universal Interface Module (UIM) and supplies step‑by‑step guidance for installing, configuring, and operating the module in Grass Valley broadcast systems. It covers software version 2.1.0, hardware configurations, and supported network interfaces.

The document is organized into chapters covering release information, product description, installation procedures for various UIM variants (DIS‑GEIP, SAN‑GEIP, SAN‑FCIP), developer information, service procedures, and upgrade appendices. Safety and troubleshooting sections provide additional guidance for field technicians.

What's inside

Finding Information
Version 2.1.0 Release Information
Product Description
UIM‑DIS‑GEIP Installation
UIM‑SAN‑GEIP Installation
UIM‑SAN‑FCIP Installation
Information for Application Developers
Service Information
Appendix A – Upgrading Existing Profile Systems

Specifications

Supported network interfaces	1000BT Ethernet, Fibre Channel
Ethernet redundancy	Supported
