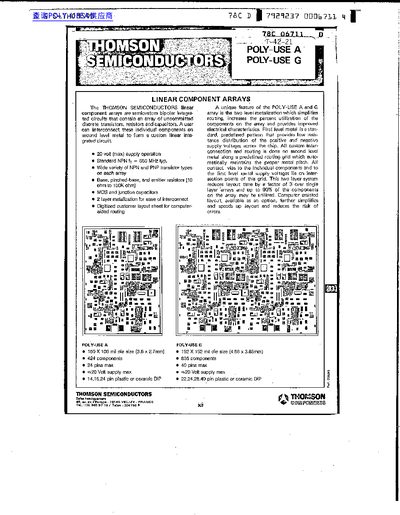

The document describes the THOMSON SEMICONDUCTORS POLY-USE A and G linear component arrays, which are semicustom bipolar integrated circuits containing uncommitted discrete transistors, resistors, and capacitors. These arrays utilize a unique two-level metalization system to simplify routing and increase component utilization.
| Supply Voltage (Max) | <20 Volt |
|---|---|
| Die Size (POLY-USE A) | 150 X 106 mil |
| Die Size (POLY-USE G) | 192 X 152 mil |
| Total Components (POLY-USE A) | 431 |
| Max Pins (POLY-USE A) | 24 pins |
| Max Pins (POLY-USE G) | 40 pins |
The maximum supply operation on each array is less than 20 volts.
The arrays contain both MOS capacitors and junction capacitors for various applications.
