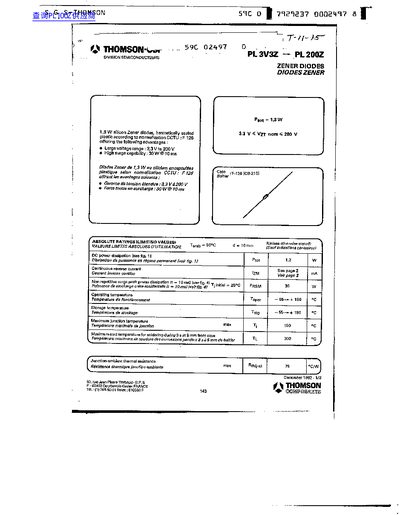

This document is a datasheet for the Thomson PL3V3Z to PL200Z series of 1.3W silicon Zener diodes. The devices are hermetically sealed in plastic according to normalization CCTU F 126 and offer a large voltage range from 3.3V to 200V. They feature a high surge capability of 30W at 10ms. This manual is written in French.
| Power Dissipation | 1.3 W |
|---|---|
| Voltage Range | 3.3 V to 200 V |
| Surge Capability | 30 W @ 10 ms |
| Operating Temperature | -55 to +180 °C |
| Storage Temperature | -55 to +150 °C |
| Maximum Junction Temperature | 150 °C |
| Continuous Reverse Current | 2 mA |
The maximum allowable power dissipation is 1.3 W under specified conditions.
The marking is clear with a ring at the cathode end.
