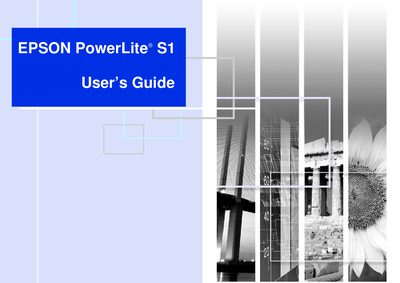

This is a user's guide for EPSON PowerLite S1 projector.
This user guide covers everything needed to install and use the Epson PowerLite S1 projector, including part names, connection options, basic and advanced operation, and maintenance procedures. It also contains safety information, warranty details, and an index for quick reference.
Key features highlighted are the projector's compact size, auto‑setup capability, various input ports, and adjustable focus and keystone. The specifications section lists dimensions, weight, resolution, lamp power, audio output, power requirements, operating temperature, and connector types.
| Dimensions | 14.6 (W) × 4.2 (H) × 10.4 (D) inches |
|---|---|
| Weight | Approximately 7 lbs (3.2 kg) |
| Resolution | SVGA 800 × 600 (480,000 dots) |
| Lamp Power | UHE Lamp 130W |
| Maximum Audio Output | 1W monaural |
| Power Supply | 100‑120 V, 2.7 A, 50/60 Hz (also 200‑240 V, 1.3 A) |
| Operating Temperature | +5 °C to +35 °C (41 °F‑95 °F) |
| Connector – Monitor Out | Mini D‑Sub 15‑pin (female) |
Press the [Power] button on the control panel to turn the projector on or off.
Use the focus ring on the front of the projector to adjust the image focus.
It includes a two‑year limited warranty and a 90‑day warranty for the projector lamp.
Press the [Aspect] button on the remote control to switch between 4:3 and 16:9 aspect ratios.
