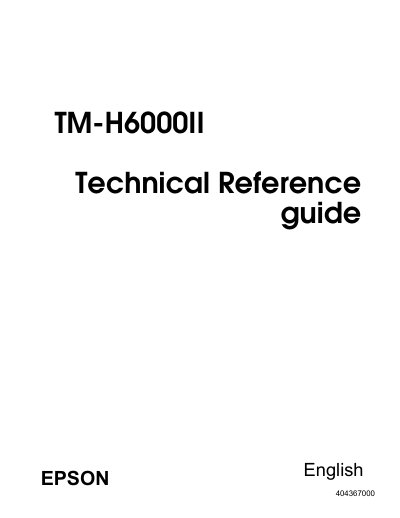

This is a technical reference guide for EPSON TM-H6000II
This Technical Reference Guide covers all aspects of the Epson TM‑H6000II POS printer, including general product information, system planning, setup procedures, and maintenance & troubleshooting. It also contains application development sections for OPOS and the Epson Advanced Printer Driver (APD), offering programming guidance for developers.
Safety precautions, EMC and safety standards, electrical characteristics, and environmental conditions are detailed, along with extensive specifications for printing methods, paper handling, interfaces, power supply, and mechanical dimensions.
| Print method (Slip) | 9‑pin serial impact dot matrix |
|---|---|
| Print method (Receipt) | Thermal line 0.141 dots/mm (180 dpi) |
| Paper width (Slip & E/P) | 68 mm to 230 mm |
| Paper width (Receipt) | 80 mm / 60 mm / 58 mm selectable |
| Interface (compatible) | RS‑232C / Bidirectional parallel (optional RS‑485, USB, 10Base‑T) |
| Power supply | AC adapter PS‑170 or PS‑180, operating voltage +24 VDC ±10% |
| Weight | Approximately 5.8 kg |
| Operating temperature | 5 °C to 45 °C |
| Humidity range | 10 % to 90 % |
The printer is powered by an AC adapter (PS‑170 or PS‑180) with an operating voltage of +24 VDC ±10%. Optional power supplies are also supported.
It supports RS‑232C and bidirectional parallel interfaces as standard, with optional dealer‑installed RS‑485, USB, and 10Base‑T interfaces.
The receipt section can use paper widths of 80 mm, 60 mm, or 58 mm, selectable via the paper roll spacer.
