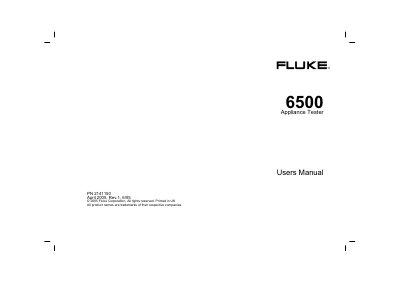

6500 Appliance Tester Users Manual
The Fluke 6500 Appliance Tester is a handheld instrument for performing a range of electrical safety tests on portable appliances, including earth‑bond, insulation, leakage and PELV tests. The manual begins with safety warnings, unpacking instructions, and contact information for Fluke support.
It then describes the front‑panel layout, push‑button functions, and the various test modes (auto, manual, standard, fast). Detailed procedures for each test, data recording, printing, and calibration are included, followed by the full technical specifications of the device.
| Size (L×W×H) | 200 mm × 275 mm × 100 mm |
|---|---|
| Weight | 3.0 kg |
| Power Supply | 230 V ±10 % –15 %, 50 Hz ±2 % |
| Power Consumption (idle) | 13 W typical |
| IP Rating (enclosure) | IP‑40 |
| Earth Bond Test Accuracy | ± (5 % + 4 counts) |
| Insulation Test Range | 0.1 MΩ to 299 MΩ |
Each Fluke product is warranted for two years, with parts, repairs, and service covered for 90 days.
Use the Earth bar on the front panel to zero the Earth Bond test lead before performing the test.
The tester is set for a nominal 230 V AC – 50 Hz operation and must not be connected to a higher voltage.
The tester may be connected to a mains socket protected for a maximum current rating of 13 A.
