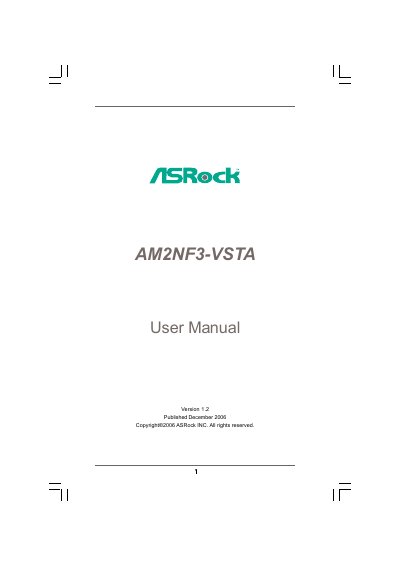

This document is the user manual for the AM2NF3-VSTA motherboard, which provides specifications, information, and instructions for using the motherboard. The document includes copyright information and disclaimers from ASRock Inc.
This manual introduces the ASRock AM2NF3-VSTA motherboard, lists the package contents, and details the hardware specifications such as CPU socket, chipset, memory support, and expansion slots. It also explains minimum hardware requirements for Windows Vista and other supported operating systems.
The guide walks users through step‑by‑step installation of the CPU, memory modules, storage devices, and connectors, followed by BIOS configuration, security password setup, and use of the support CD for drivers and utilities. An appendix covers AMD’s Cool ‘n’ Quiet power‑saving technology.
| Form Factor | ATX (12.0‑in x 8.0‑in, 30.5 cm x 20.3 cm) |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon 64FX / 64X2 / 64 and Sempron |
| Chipset | NVIDIA nForce3 250 |
| Audio Codec | C‑Media CM6501 7.1‑channel |
| LAN | Realtek PHY RTL8201CL, 10/100 Mbps |
| Rear Panel USB Ports | 4 x USB 2.0 |
It uses a Socket AM2 compatible with AMD Athlon 64FX, 64X2, 64 and Sempron processors.
The rear I/O provides four USB 2.0 ports.
The motherboard can support up to 16 GB of DDRII memory.
It uses the C‑Media CM6501 7.1‑channel audio codec.
