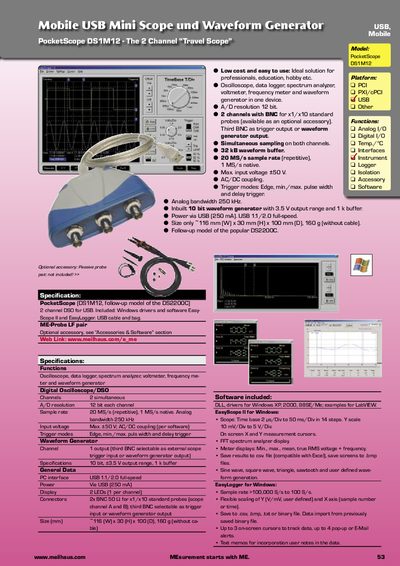

Meilhaus PocketScope DS1M12 is a dual-channel portable USB oscilloscope and waveform generator with low cost and easy to use, it is an ideal solution for professionals, education, hobby etc. It has oscilloscope, data logger, spectrum analyzer, voltmeter, frequency meter and waveform generator functions.
The PocketScope DS1M12 is a compact USB‑powered digital storage oscilloscope offering two simultaneous channels, a 250 kHz analog bandwidth, and a 10‑bit waveform generator with a 3.5 V output range. It provides functions such as oscilloscope, data logger, spectrum analyzer, voltmeter, frequency meter and waveform generation in a single device.
The unit includes Windows drivers and Easy‑Scope/Easy‑Logger software, a USB cable and a carrying bag. Optional accessories include a passive probe pair. Physical dimensions are about 416 mm × 30 mm × 100 mm and it weighs roughly 160 g. Power is supplied via USB (up to 250 mA).
| Sample rate (repetitive) | 20 MS/s |
|---|---|
| Sample rate (native) | 1 MS/s |
| Analog bandwidth | 250 kHz |
| Maximum input voltage | +50 V |
| A/D resolution | 12 bit |
| Number of channels | 2 simultaneous |
| Physical size | 416 mm × 30 mm × 100 mm |
| Weight | 160 g |
| Power consumption | USB 250 mA |
| Waveform generator resolution | 10 bit, 3.5 V output range |
The device can sample at up to 20 MS/s in repetitive mode and 1 MS/s natively.
The unit is powered via USB, drawing up to 250 mA.
The analog bandwidth is 250 kHz.
